Product descriptions from the supplier
OverviewProduct Description

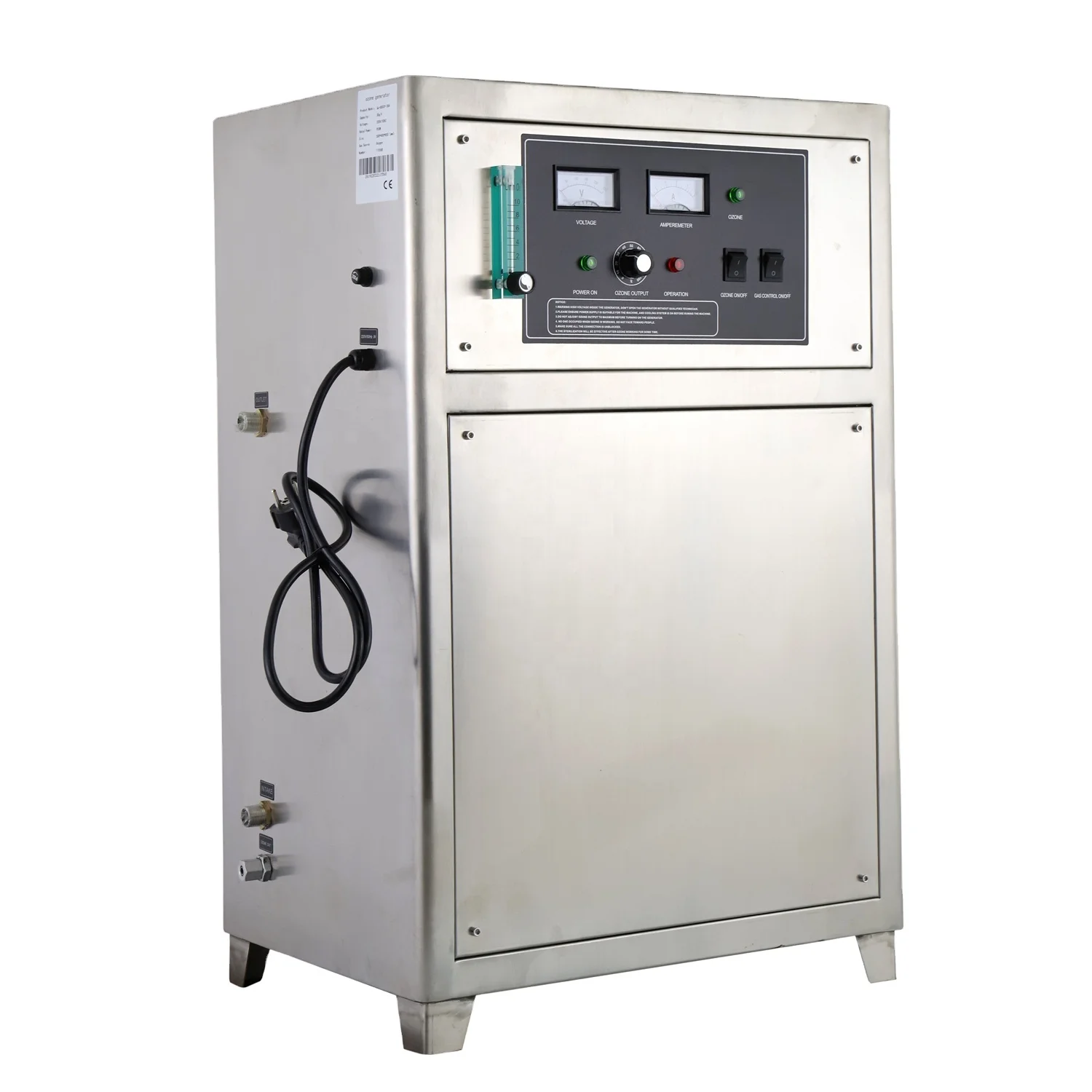

1) Complete machine PSA oxygen source, with built in oxygen generator
2) High ozone concentration with stable ozone output
3) Low rate of ozone decay
4) Water cooled quartz ozone tube
5) Easy heat dissipation, low temperature rise and high efficiency.
6) Adjustable ozone output, adjustable oxygen flow rate for meeting different requirements
7) Inner air cooler and air dryer to make sure ozone quality
8) Ozone output: 30g/hr.
Specification
| Item | Unit | BS-9030M |
| Ozone output | G/Hr | 30 |
| Power | W | 950 |
| Voltage | V/Hz | AC 220/110,50/60 |
| Concentration | Mg/L | 60-80 |
| Gas feeding | / | Oxygen Source |
| O2 concentration rate | L/Min | 5-6 |
| Dimension(L X W X H) | cm | 55X40X85 |
| Unit weight | Kg | 48 |
| External case | / | Stainless steel |
| Cooling method | / | Water cooling |
| Cooling water flow rate | M3/Hr | 0.1-0.5 |
| Attachments | Sets | 3 meters teflon tube, fuse, etc |
Air Treatment:
kill bacteria and virus, air purifier and sterilizer; eliminate mold, odor and smoke; poultry farm, slaughter industry, food processing, mushroom cultivation, pharmaceutical industry, hotel etc.
Water Treatment:
water purifying and sterilizing; Disinfection of vegetable and fruit; drinking water, purified water; mineral water, aquarium,
swimming pool water, spas, fish farming, fish tank
