OverviewProduct Overview
OZONE GENERATOR WITH OXYGEN FEEDING
1) Complete machine PSA oxygen source, with built in oxygen generator
2) High ozone concentration with stable ozone output
3) Low rate of ozone decay
4) Water cooled quartz ozone tube
5) Easy heat dissipation, low temperature rise and high efficiency.
6) Adjustable ozone output, adjustable oxygen flow rate for meeting different requirements
7) Inner air cooler and air dryer to make sure ozone quality
FEATURES AT A GLANCE
1.Adjustable ozone output, stable ozone output. 2.Made of stainless steel with strong corrosion resistance and oxidation
resistance.
3.With inner oxygen generator, high ozone concentration.
4.Air cooled and water cooled dual cooling system.
5.Quartz tube, micro-gap discharge, high ozone concentration.

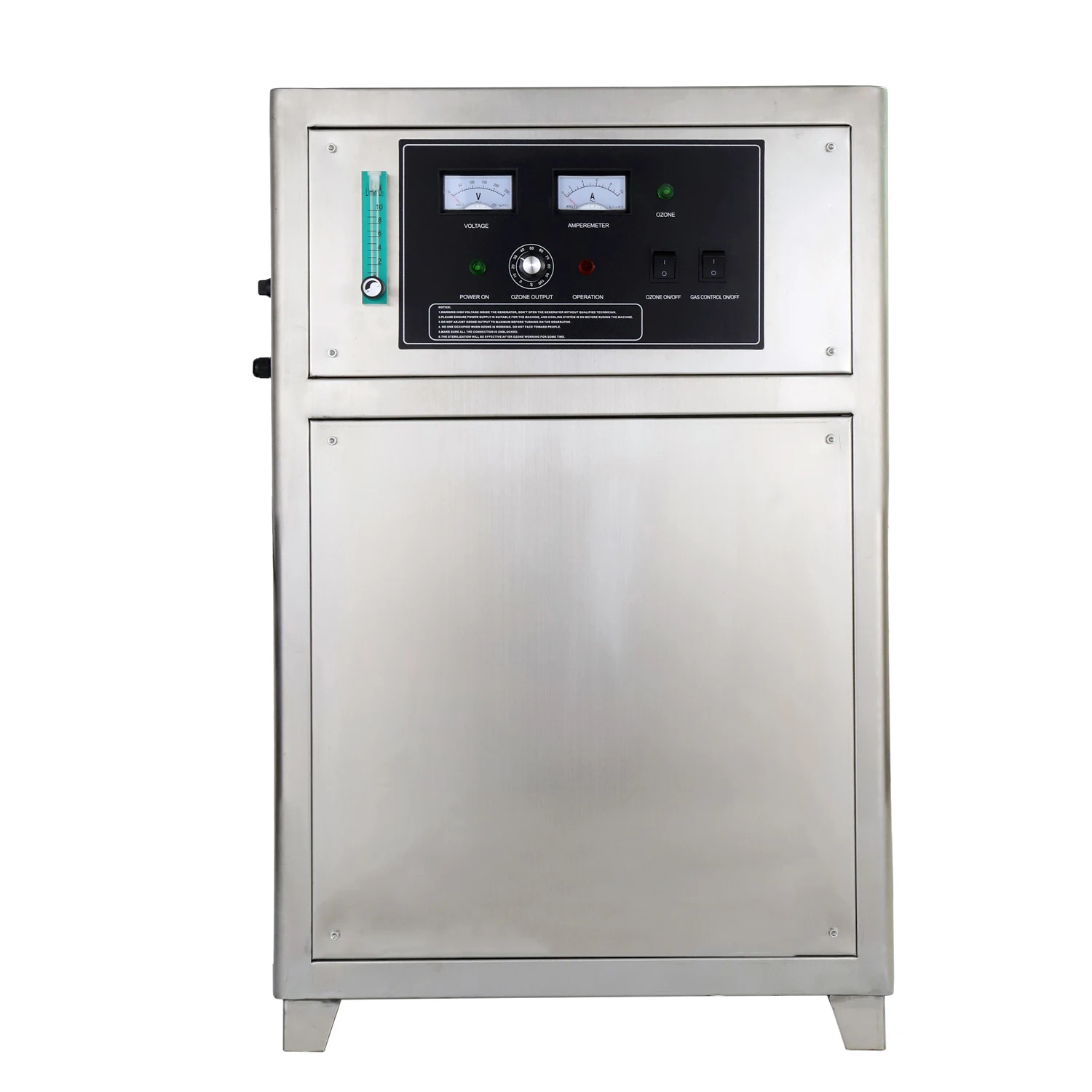

Right

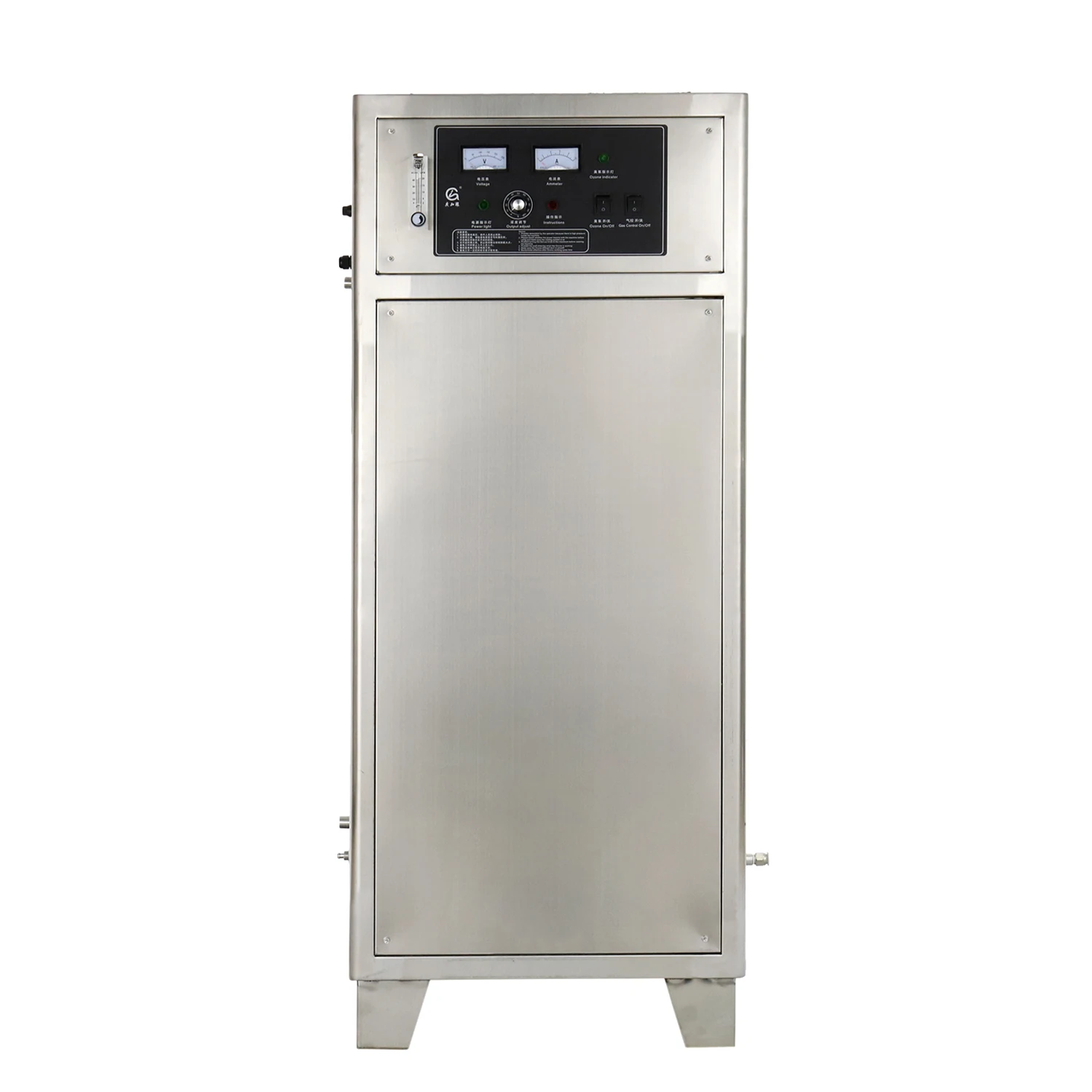

Front
PRODUCT SPECIFICATIONS
| 1 | Product Model | BS-9050M |
| 2 | Ozone Production(g/h) | 50g/h |
| 3 | Ozone Concentration | 60-80mg/l |
| 4 | Power Rating(W) | 2150W |
| 5 | Weight | 75kg |
| 6 | Dimension(mm) | 550*400*1350mm |
| 7 | Cooling-Down Method | Water |
| 8 | Gas Source | Inner oxygen generator |
| 9 | Ozone Tube | Quartz glass tube |
| 10 | Ozone Technology | Cold Corona Discharge |
| Ozone model | Ozone output | ozone concentration | Power rating | Weight | Dimension | Cooling way |
| BS-9010M | 10g/h | 60-80mg/l |
680w | 43kg | 55*40*75cm | Air cooling |
| BS-9015M | 15g/h | 780w | 48kg | 55*40*85cm | Air cooling | |
| BS-9020M | 20g/h | 850w | 50kg | 55*40*85cm | Air cooling | |
| BS-9030M | 30g/h | 950w | 55kg | 55*40*85cm | Air cooling + water cooling |
|
| BS-9040M | 40g/h | 2100w | 60kg | 55*40*134cm | ||
| BS-9050M | 50g/h | 2150w | 75kg | 55*40*134cm | ||
| BSS-9060M | 60g/h | 2200w | 80kg | 55*40*134cm | ||
| BS-9080M | 80g/h | 3800w | 86kg | 60*50*143cm | ||
| BS-9100M | 100g/h | 3950w | 107kg | 60*50*143cm |
Product Application
Ozone for air purification:
1. Remove a myriad of odors from smoke, pets, animals, cooking, mold, mildew, etc.
2. Keep air fresher and cleaner for hotel, motel rooms, vehicles, etc.
3. Keep insects & vermin out, retard mold growth, used in basement, attic, boat, ect.
4. Remove methylbenzene, formaldehyde, etc harmful gas, create a healthier environment.

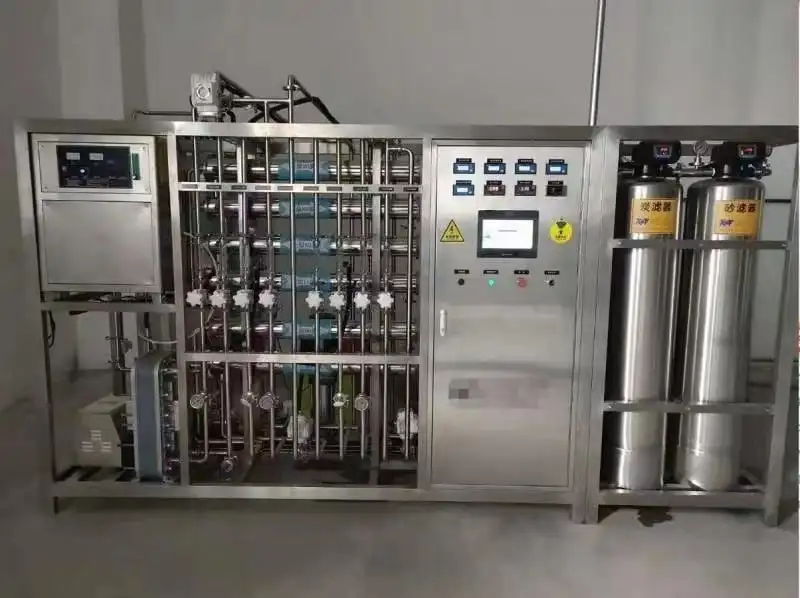

Ozone for water purification:
1. Waste water treatment , Chemical oxidation ,sterilization
2. Swimming pool and SPA water sterilization and disinfection
3. Domestic water sterilizer for housing estate
4. Aquaculture and aquarium water sterilization
5. Ozonated water for sterilization and disinfection ( sea food processing ,washing beverage bottle and Barrel)
7.Beverage and Drinking water disinfection , Bottle water sterilizer
Company Profile
Guangzhou Baisheng Ozone Equipment Co.,Ltd
Specializing in ozone machine over 12years. With many years hard working, we have grown into Guangzhou largest ozone generator manufacturer. Covering area 5000 Sqm, with 90 workers. We can supply all kinds of ozone machine, including ozone generator, oxygen generator, ozonated water machine, car air purifier, ozone disinfection cabinet ect.Welcome your inquiry!
