Product Description




Specification

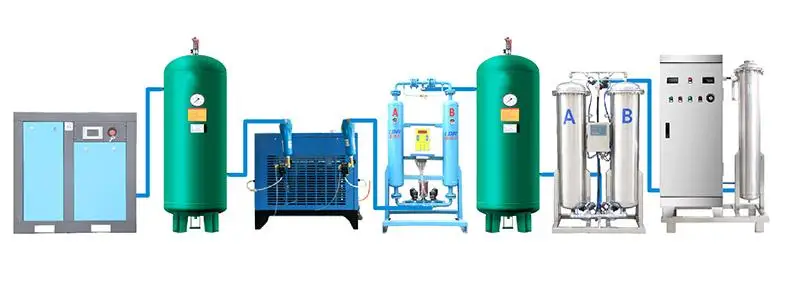

300g ozone generator system with oxygen feeding
1. 300g ozone machine
Ozone model	BS-9300B	Dimension	1350*700*1850mm
Ozone output	300g/h	Power consumption	3kw
Ozone concentration	80-100mg/l	Cooling water flow rate	0.5-1m3/h
Inlet pressure	0.1-0.4Mpa	Outlet pressure	0.1-0.2Mpa
2. Oxygen Generator system
Oxygen Model	BS-60L	Dimension	800*500*1600mm
Oxygen output	60L/Min	Power consumption	50W
Oxygen purity	92+-3%	Oxygen output pressure	0.1-0.2Mpa
3. Refrigerant air dryer
Air flow rate	1.0m3/Min	Power consumption	330w
Dimension	650*410*640mm	Weight	38.5kg
4. Absorption air dryer
Air flow rate	1.5m3/Min	Dew point	≤ -40 degree
Dimension	710*500*1250mm	Weight	120kg
5. Screw air compressor
Air flow rate	1.5M3/Min	Power consumption	11kw
Dimension	940*720*1030mm	Weight	315kg
6. Air storage tank
Volume	0.3m3	Dimension	550*1592mm
Weight	75kg	working pressure	0.8Mpa
Note: Whole system includes the connecting pipes and etc.

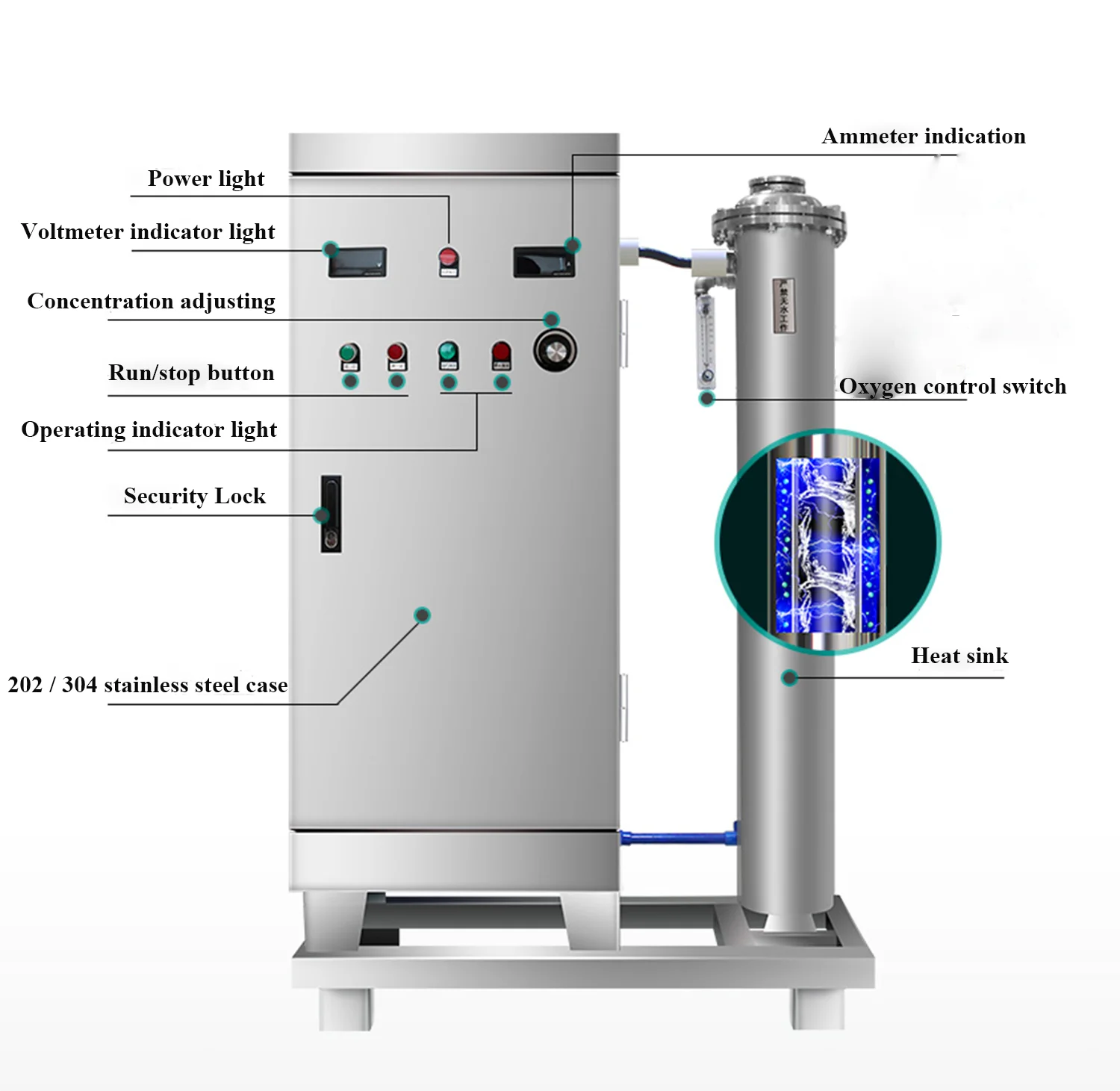

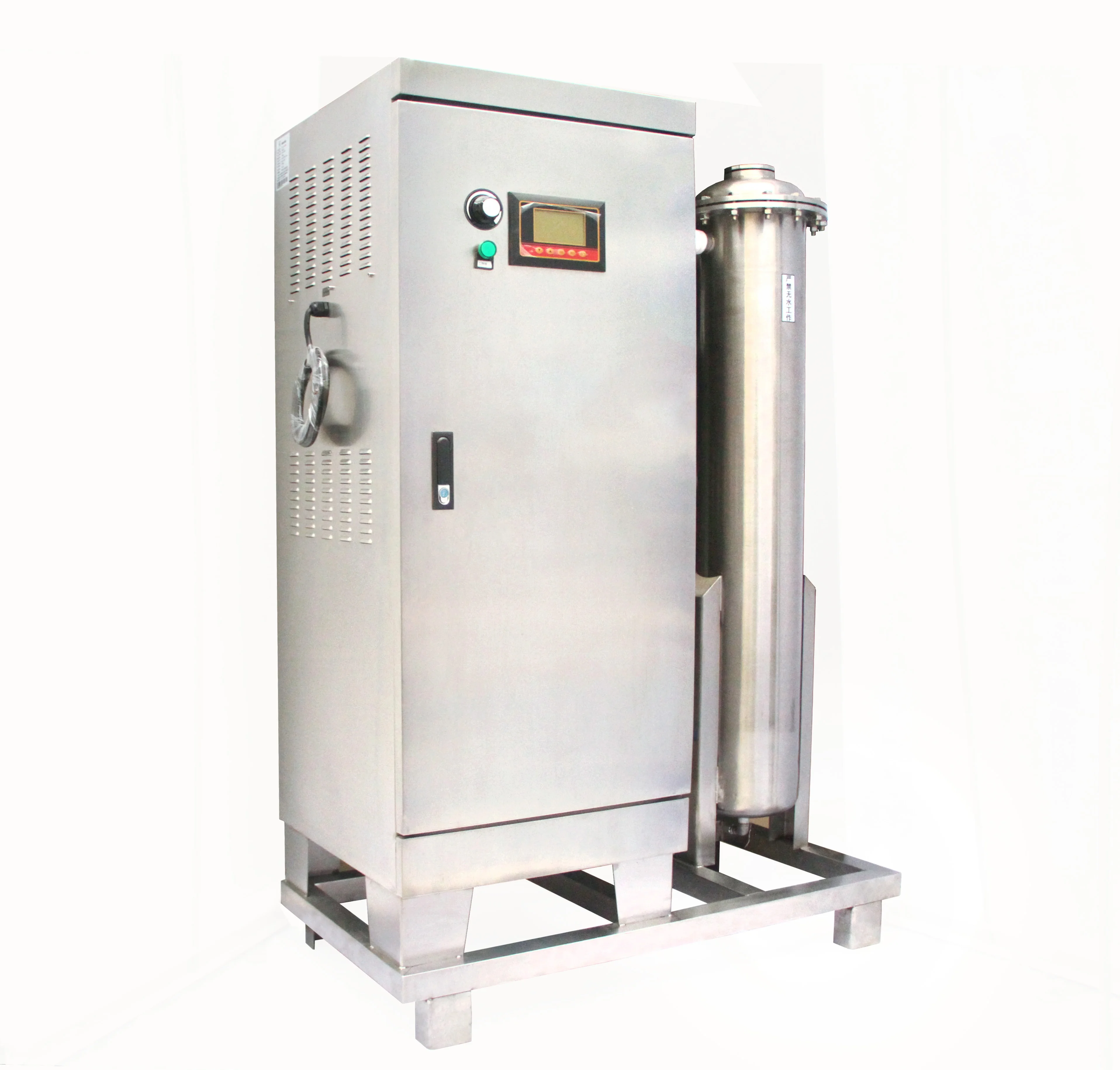

300g ozone generator with oxygen feeding
1. Adopt high frequency power supply system, low power consumption and high efficiency 2. International micro-gap discharge
technology, quartz glass tubes honeycomb discharge. 3. Quartz glass tubes produce ozone with high efficiency than enamel tubes,
high ozone concentration and stable output. 3. Advanced water cooling system with good cooling effect. It could improve ozone
output and concentration. 4. Pure oxygen as gas feed, no by-product, green technology. 5. Long lifetime, can work 24/7. 6. Adopt
stainless steel 304 ozone reaction cabinet and stainless steel 316 discharging tubes. 7. Customized ozone generators are available
according to different requirements.
