Product Description
Specification

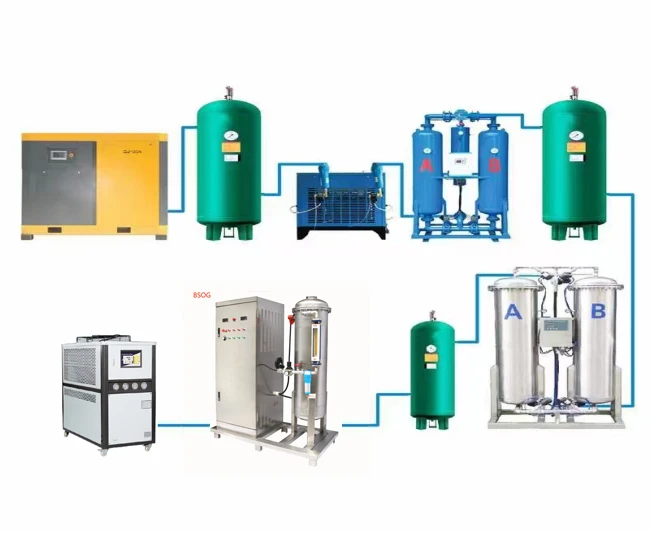

| 1000g ozone generator system with oxygen feeding | |||
| 1. 1000g ozone machine | |||
| Ozone model | BS-901KL | Dimension | 1600*750*1900mm |
| Ozone output | 1000g/h | Power consumption | 8kw |
| Ozone concentration | 120-150mg/l | Cooling water flow rate | 1-1.5m3/h |
| Inlet pressure | 0.1-0.4Mpa | Outlet pressure | 0.1-0.2Mpa |
| 2. Oxygen Generator system | |||
| Oxygen Model | BS-200L | Dimension | 1150*800*1950mm |
| Oxygen output | 200L/Min | Power consumption | 50W |
| Oxygen purity | 92+-3% | Oxygen output pressure | 0.1-0.2Mpa |
| 3. Refrigerant air dryer | |||
| Air flow rate | 3.6m3/Min | Power consumption | 900w |
| Dimension | 930*500*910mm | Weight | 77kg |
| 4. Absorption air dryer | |||
| Air flow rate | 3.8m3/Min | Dew point | ≤ -40 degree |
| Dimension | 900*500*1850mm | Weight | 260kg |
| 5. Screw air compressor | |||
| Air flow rate | 5M3/Min | Power consumption | 30kw |
| Dimension | 1200*820*1135mm | Weight | 566kg |
| 6. Air storage tank | |||
| Volume | 0.6m3 | Dimension | 650*2051mm |
| Weight | 130kg | working pressure | 0.8Mpa |
| Note: Whole system includes the connecting pipes and etc. | |||
Company Profile
Guangzhou Baisheng 0zone Equipment Co.,Ltd is an international company specializing in R&D, ozone system design,manufacturing and serving. We have been commited ourselves to ozone technology industrialization and innovation,and have been serving for many customers in drinking water, reclaimed-water recycling, cosmetic container surfaceaquaculture, poultry, swimming pool, pharmaceutical workshop, food factories, food storage, fruit and vegetabel pesti-cide degradation, wastewater treatment (hospital, food factory, electroplate factory and municipal wastewater) and in-dustrial odor removal Baisheng Ozone is a technology-oriented company, attaching great importance to the advanced technology. The R&Dengineers have good skils and rich experience in ozone industry, continuously developing high quality ozone productsBaisheng 0zonee commits to the development of technology and application closely according to the market demandand the series of the products are in the leading position in domestic market. Advanced technology, industrializationand volume advantage has made our ozone products extremely competitive in both domestic and international market.OUALITY FIRST, BUSINESS INTEGRITY" is Baisheng Ozone's company concept, and continuously "INNOVATION, OUALITY,SERVICE, EFFICIENTY" is Baisheng 0zone's source of development. Baisheng 0zone will make every effort to provide highquality product and excellent service to customers around the world.
